Well Ulrich came back with some news regarding your Partition:
Craig,
please read the whole answer before doing any change to the disk.

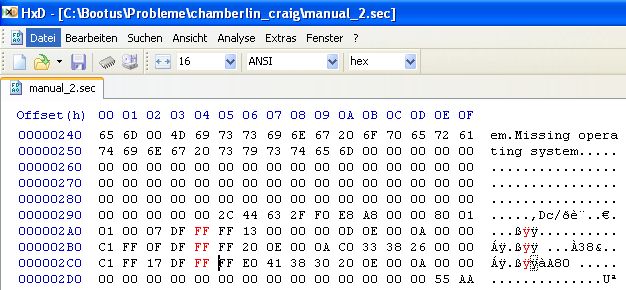

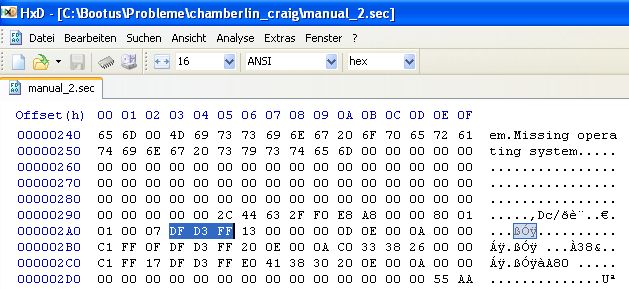

Enclosed I am returning the modified file manual_2.sec plus two screenshots:hex.jpg shows the original end CHS values, hex_2.jpgshows the new end CHS values.
In short I have changed the end sector from D3h to FFh. Please note that this value also contains two bits of the cylinder number. The end sector is now 63 (3Fh) which is the standard value.
If you restore the file manual_2.sec to the disk and reboot the number of sectors per track should be the standard value 63.
There is a problem however !!!
The whole disk was installed with the low value of sector per track = 19 (13h). Therefore the restore operation does not solve the installation problem since the first partition starts already in the second track which is LBA number 19 (13h). This means even if you restore the file manual_2.sec and the disk parameters are changed to standard values (especially sectors per track should be 63) the installation to the mbr (track 0) is not possible since the first partition starts already on the LBA sector 19 (13h).
If you want to use this disk for installing the boot manager it requires at least to delete and reinstall the first partition. After the reinstallation the first partition would start at LBA = 63 and there would be enough space in the track 0 for the boot manager.
Propably due to the change of the disk parameters the other partitions might
not work any more too, and might require also a reinstallation.
In short: after restoring manual_2.sec you would need to reinstall all partitions.
I know that is bad news.
The quickest solution is to install the boot manager on another disk which does have the standard disk parameters, and not changing anything on the current disk.
Regards
Ulrich Straub
It sounds to me like there will be alot of work to getting yourself back to the basics. It appears there was a configuration of your disk when it was shipped that prevented the Boot-US from working properly right out of the box.
Here are his attached files:
http://pcmichiana.com/wp-conte…..05/hex.jpg
http://pcmichiana.com/wp-conte…../hex_2.jpg
http://pcmichiana.com/images/m…..nual_2.sec
